| Non-asbestos Series | MPTFE Series |
|
Kaxite® line offers a variety of elastomers to excel in a wide range of services.
|

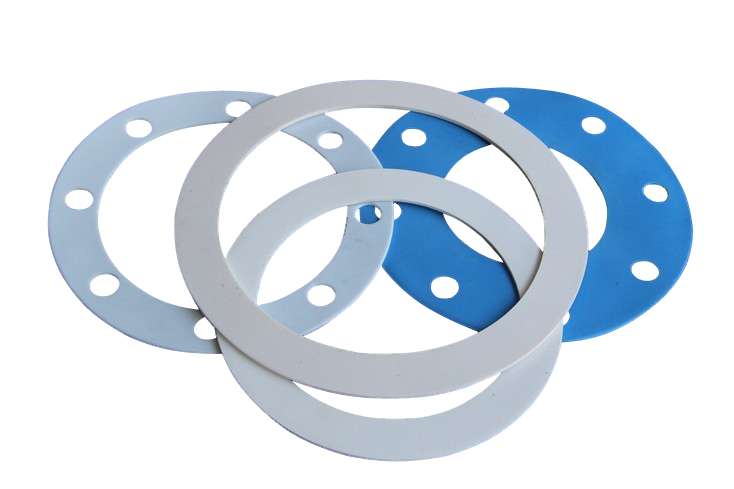

Modified PTFE line offers good resistance to cold flow (creep), high pressure service, and good chemical compatibility.
|
KXT 2000 Datasheet PDF
Style 2000
Aramid fibers with a nitrile binder.
Benefits
Excellent sealability
• Unique blend of aramid fibers, fillers and a nitrile rubber binder provides improved torque retention and drastically lowered emissions levels
Cost savings
• Cuts operational costs through reduced:- Waste- Waste- Maintenance- Stocked inventory- Fluid loss- Energy consumption
Media
• Water
• Aliphatic hydrocarbons
• Oils
• Gasoline
| KXT 2000 Specifications | |
| Min. Temperature: | -100oF |
| Max Temperature: | 400oF |
| Min. Pressure: | 1000 (PSI) |
| Maximum PxT 1/16: | 350,000 (oF x PSIG) |
| Maximum PxT 1/8: | 250,000 (oF x PSIG) |
KXT 2200 Datasheet PDF
Style 2200
Aramid fibers with a nitrile binder.
Benefits
Excellent sealability
• Unique blend of aramid fibers, fillers and a nitrile rubber binder provides improved torque retention and drastically lowered emissions levels
Cost savings
• Cuts operational costs through reduced:- Waste- Waste- Maintenance- Stocked inventory- Fluid loss- Energy consumption
Media
• Water
• Saturated steam
• Inert gases (meets MIL-G-24696B)
| KXT 2200 Specifications | |
| Min. Temperature: | -100oF |
| Max Temperature: | 400oF |
| Min. Pressure: | 1200 (PSI) |
| Maximum PxT 1/16: | 350,000 (oF x PSIG) |
| Maximum PxT 1/8: | 250,000 (oF x PSIG) |
KXT 2300 Datasheet PDF
Style 2300
Aramid fibers with a neoprene binder.
Benefits
Excellent sealability
• Unique blend of aramid fibers, fillers and a SBR rubber binder provides improved torque retention and drastically lowered emissions levels
Cost savings
• Cuts operational costs through reduced: - Waste- Waste- Maintenance- Stocked inventory- Fluid loss- Energy consumption
Media
• Water
• Saturated steam
• Refrigerants
• Oils
• Fuels
| KXT 2300 Specifications | |
| Min. Temperature: | -100oF |
| Max Temperature: | 400oF |
| Min. Pressure: | 1200 (PSI) |
| Maximum PxT 1/16: | 350,000 (oF x PSIG) |
| Maximum PxT 1/8: | 250,000 (oF x PSIG) |
MPTFE 2504 Datasheet PDF
Style 2504 Blue
PTFE with glass microspheres.
Benefits
Tighter Seal
• Improved performance over conventional PTFE
• Reduced product loss and emissions
Reduced creep relaxation
• Unique manufacturing process minimizes cold flow problems typical of skived and expanded PTFE sheets
• Excellent bolt torque retention
Chemical resistance
• Withstands a wide range of chemicals for extended service life in a wide variety of applications
Cost savings
• Cuts operational costs through reduced:- Fluid loss- Energy consumption- Maintenance costs- Inventory costs- Waste
Largest sheet sizes
• Offers some of the largest sheet sizes in the industry
• Improved material utilization reduces waste
Branding and color coding
• Easy identification of superior MPTFE® products
• Reduces misapplication and use of unauthorized, inferior substitutes
Media
• Moderate concentrations of acids and some caustics
• Hydrocarbons
• Solvents
• Water
• Refrigerants
• Cryogenics, hydrogen peroxide
| MPTFE 2504 Specifications | |
| Min. Temperature: | -450oF |
| Max Temperature: | 500oF |
| Min. Pressure: | 800 (PSI) |
| Maximum PxT 1/16: | 350,000 (oF x PSIG) |
| Maximum PxT 1/8: | 250,000 (oF x PSIG) |
MPTFE 2510 Datasheet PDF
Style 2510 Off-White
PTFE with barium sulfate filler.
Benefits
Tighter Seal
• Improved performance over conventional PTFE
• Reduced product loss and emissions
Reduced creep relaxation
• Unique manufacturing process minimizes cold flow problems typical of skived and expanded PTFE sheets
• Excellent bolt torque retention
Chemical resistance
• Withstands a wide range of chemicals for extended service life in a wide variety of applications
Cost savings
• Cuts operational costs through reduced:- Fluid loss- Energy consumption- Maintenance costs- Inventory costs- Waste
Largest sheet sizes
• Offers some of the largest sheet sizes in the industry
• Improved material utilization reduces waste
Branding and color coding
• Easy identification of superior MPTFE® products
• Reduces misapplication and use of unauthorized, inferior substitutes
Media
• Strong caustics
• Moderate acids
• Chlorine
• Gases
• Water
• Steam
• Hydrocarbons
• Cryogenics and aluminum fluoride
| MPTFE 2510 Specifications | |
| Min. Temperature: | -450oF |
| Max Temperature: | 500oF |
| Min. Pressure: | 1200 (PSI) |
| Maximum PxT 1/16: | 350,000 (oF x PSIG) |
| Maximum PxT 1/8: | 250,000 (oF x PSIG) |
MPTFE 2545 Datasheet PDF
Style 2545
PTFE Gasketing with aluminosilicate microspheres
Benefits
Tighter Seal
• Highly compressible PTFE outer layers seal under low bolt load-suitable for many non-metallic flanges
• Compressible layers conform to surface irregularities, especially on warped, pitted or scratched flanges
• Rigid PTFE core reduces cold flow and creep normally associated with conventional PTFE gaskets
Excellent chemical compatibility
• Pure PTFE withstands a wide range of chemicals
Easy to cut and install
• Soft PTFE can be cut easily from larger sheets, reducing inventory costs and expensive downtime
• Rigid PTFE core facilitates installation, especially on large diameter flanges and hard-to-reach areas
Media
• Strong caustics
• Strong caustics
• Strong acids
• Hydrocarbons
• Chlorine
• Cryogenics
• Glasslined equipment
• Plastic piping
• Low bolt load applications
| MPTFE 2545 Specifications | |
| Min. Temperature: | -450oF |
| Max Temperature: | 500oF |
| Min. Pressure: | 1200 (PSI) |
| Maximum PxT 1/16: | 350,000 (oF x PSIG) |
| Maximum PxT 1/8: |
250,000 (oF x PSIG) |
