In industrial piping and bolted flange connections, managing electrical continuity and preventing corrosion are critical challenges. A Flange Insulation Gasket Kit is an engineered solution designed to isolate flanges electrically, thereby preventing galvanic corrosion, protecting equipment from stray electrical currents, and ensuring personnel safety. For engineers, maintenance supervisors, and procurement specialists, selecting the right insulation kit is paramount for system integrity and longevity. Kaxite Sealing specializes in manufacturing high-performance, reliable flange insulation solutions tailored to demanding industrial environments.

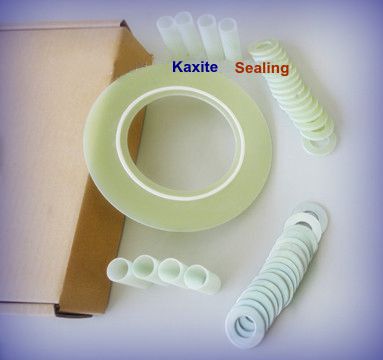

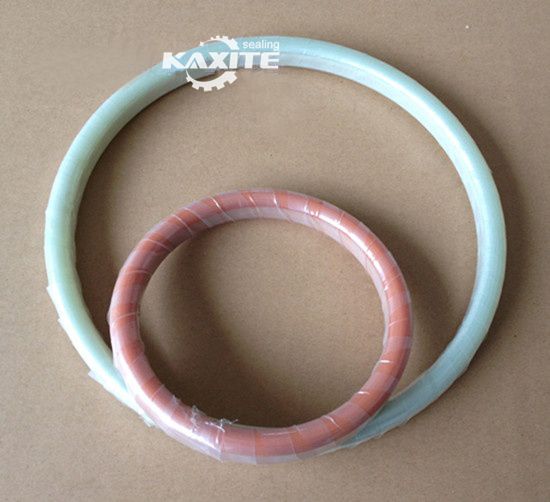

The principle behind these kits is straightforward yet vital: they introduce a high-resistance barrier within the flange assembly. This barrier breaks the electrical circuit that would otherwise form between two dissimilar metals (or the same metal in a corrosive electrolyte), stopping the flow of corrosive currents. A typical complete kit from Kaxite Sealing includes not just the insulating gasket itself, but all necessary components to fully isolate the connection: insulating sleeves for the bolts, insulating washers for both under the bolt head and the nut, and sometimes a steel washer to protect the insulating components during tightening.

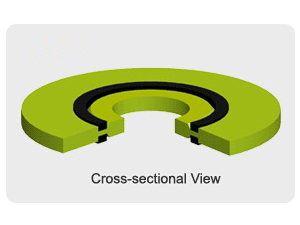

Every Kaxite Sealing Flange Insulation Gasket Kit is meticulously designed. Here is a breakdown of the standard components and their specifications:
The following table outlines the standard specifications for Kaxite Sealing's popular G11 Epoxy Glass Flange Insulation Kits. These are suitable for a wide range of applications including water pipelines, oil and gas, chemical processing, and HVAC systems.
| Parameter | Specification | Notes / Standards |
|---|---|---|
| Primary Gasket Material | G11 Epoxy Glass Laminate | FR4 Grade; Continuous service to 265°F (130°C) |
| Pressure Rating | Up to 3000 psi (dependent on flange class & size) | Compatible with ASME B16.5 Class 150, 300, 600, 900 flanges |
| Temperature Range | -40°F to +265°F (-40°C to +130°C) | Short peak up to 300°F (149°C) possible |
| Dielectric Strength | > 800 Volts/mil | ASTM D149 |
| Compressive Strength | > 45,000 psi | ASTM D695 |
| Water Absorption | < 0.2% (24hr immersion) | ASTM D570 |
| Standard Kit Includes | 1 Gasket, Bolt Sleeves, 2 Insulating Washers per bolt, 2 Steel Washers per bolt | Kits are sized for specific flange diameter, bolt count, and bolt hole size |
| Standard Flange Sizes | 1/2" to 24" NPS (and larger on request) | ANSI, DIN, JIS, and other standards available |
| Chemical Resistance | Excellent to most acids, alkalis, solvents, and hydrocarbons | Consult Kaxite for specific aggressive chemical media |

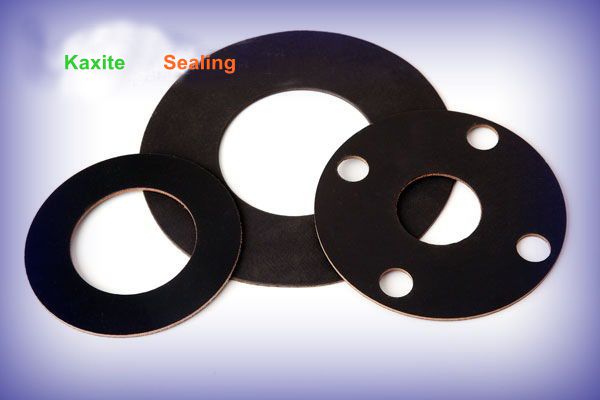

Choosing the correct material is critical. Kaxite Sealing offers kits in various materials to suit specific service conditions:
Q: When is a Flange Insulation Gasket Kit required?
A: These kits are essential in several scenarios: 1) To prevent galvanic corrosion between dissimilar metals in a flange joint (e.g., carbon steel flange with stainless steel bolts in a wet environment). 2) To isolate cathodically protected pipeline sections for effective current distribution. 3) To protect equipment from damage caused by stray electrical currents or lightning strikes. 4) In sensitive instrumentation lines where electrical noise must be minimized.
Q: Can I use just an insulating gasket without the sleeves and washers?
A: No, this is a common and critical mistake. Using only the gasket does not achieve full electrical isolation. The bolts will still create a metal-to-metal contact bridge between the two flanges, allowing current to flow and negating the insulating purpose. A complete Kaxite Sealing kit with sleeves and washers is necessary to ensure all conductive paths are broken.
Q: How do I select the correct kit size and material?
A: You need four key pieces of information: 1) Flange Nominal Size and Standard (e.g., 6" ANSI 150). 2) Number and Diameter of Bolt Holes. 3) Bolt Length (or stud bolt size). 4) Service Conditions: Temperature, pressure, and chemical media. With this data, Kaxite Sealing can provide the precisely configured kit for your application.
Q: What is the proper installation procedure for these kits?

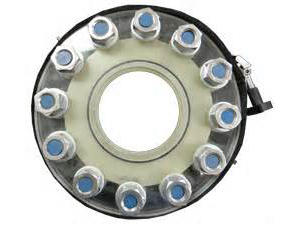

A: Correct installation is crucial. Clean flange faces thoroughly. Place the insulating gasket. Insert an insulating sleeve into each flange bolt hole. Install the bolt through the sleeve. On one side, stack a steel washer, then an insulating washer. On the other side (nut side), stack an insulating washer, then a steel washer, then the nut. Tighten bolts in a star-pattern cross-torquing sequence to the specified torque value for the bolt size and material, ensuring even compression without crushing the gasket.
Q: How do I handle existing, previously corroded flanges?
A: Surface preparation is vital. All corrosion products (rust, scale) must be removed from the flange sealing surfaces to ensure a flat, smooth contact area for the insulating gasket. Wire brushing, grinding, or light machining may be required. The flange face must be clean, dry, and free of conductive debris before installing the Kaxite insulation kit.
Q: Are these kits reusable?
A: Generally, flange insulation gasket kits are considered single-use, especially the gasket component. Once compressed during installation, the gasket material may not fully recover its original thickness and sealing capability if disassembled. The sleeves and washers may be reusable if undamaged, but for guaranteed performance and safety, Kaxite Sealing recommends using a new kit upon re-assembly.
Q: Can these kits be used for high-temperature applications?
A: Yes, but material selection is key. Standard G11 kits are rated for continuous service to 265°F (130°C). For higher temperatures, Kaxite Sealing offers kits made from PEEK or specialized high-temperature PTFE compounds, which can withstand services up to 500°F (260°C) or more. Always confirm the temperature rating of the specific material with your application's maximum operating temperature.
Q: Does Kaxite Sealing provide custom kits for non-standard flanges?
A: Absolutely. While standard ANSI and DIN flange kits are readily available, Kaxite Sealing's engineering team can manufacture custom flange insulation gasket kits for proprietary flanges, heat exchangers, large diameters, or unusual bolt patterns. They can also provide kits for insulating jacketing or other specialized isolation requirements.
