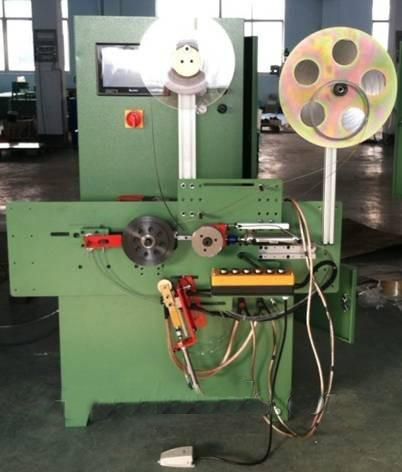

Automatic Spiral Wound Gasket Winding Machine

Introducing the Kaxite Sealing Automatic Spiral Wound Gasket Winding Machine: a precision-engineered tool that revolutionizes gasket production. This machine effortlessly creates high-quality, leak-proof seals for industrial applications, boosting efficiency in manufacturing and repair sectors. Its automated design ensures consistent results, saving time and reducing human error. Ideal for engineers and fabricators, it enhances workflow reliability, delivering peace of mind through durable, custom-fit solutions.

Send Inquiry

Product Description

Automatic spiral wound gasket Winding machine Details

STYLE	KXT E500C-V	KXT E500C-VF
	Automatic winding machine for SWG (newest design)
Working mode	Both Manual and Automatic mode
SS strip	Pre-formed SS strip in pancake	both pre-formed SS strip in pancake or 20-25kgs spool of flat strip
Producing ability	Standard package including models for 1"-10" 150# SWG with or without inner ring, other size model on request with extra charge
SWG thickness	4.5mm (also suitable for 3.2 and 6.4mm after changing roller parts, V shape winding or W shape winding for option)
Automatic function	PLC size controlling, Automatic spot welding	PLC size controlling, Automatic spot welding,with SS strip forming roller,
Maximum gasket OD	500mm
Minimum gasket ID	25mm
Gasket OD tolerance	±0.2mm
Spindle speed	0--300rpm
Total power	8kw
Spindle motor power	1.5kw
Welder power	6kw
Power supply voltage	380V or 220V for option, 3 phases
AIR COMPRESSER	0.6-0.8 MPA
PLC	xinjie
Production rate	20--30s /pc (for ANSI 6" 150LB)
Machine measurement	140010501650mm
Machine net weight	400kg
