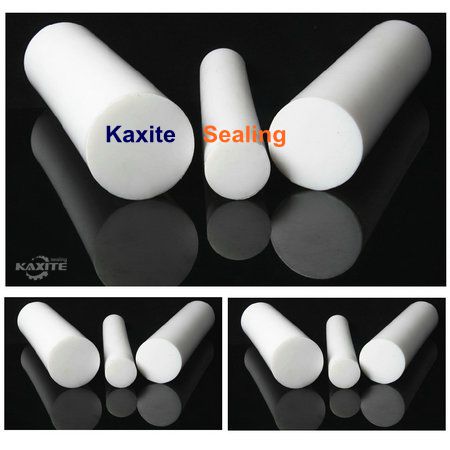

PTFE Teflon Round Rod Bar
We are one of the leading supplier and exporter of the ptfe rods in China. The ptfe rods are acknowledged for their property of very low coefficient for the friction. So the ptfe rods are self-greasing up rods.
PTFE rods may efficiently work at the temperature -200 oC to +250oC. So it is an ideal element for the food industry. It consists of the best dielectric property. Due to this property, the rods are used in electrical and electronics industries.
• Self lubricant
• High thermal resistance
• Chemically inert
• Easy installation
• Good dielectric property
• Anti friction
Usage
• In medical components
• In electrical and electronic parts.
• For manufacturing of gaskets
• For seals and bearings
• For food processing.
• For insulators.
|
PTFE Rod |
||
|
|
Standard Size: 25mm to 500mm
Length: 300mm
Grade: Virgin & All Filled Grades |
|
|
|
|
|
PTFE Extruded Rod |
||
|
|
Standard Size: 5mm Tto 200mm
Length: 900mm/1000mm
Grade: Virgin & All Filled Grades
|
|
|
|
|
Technical Data:
|
Properties |
Unit |
Result |
Standard Range |
|
BULK density |
gm/1 ASTM D 4894 |
476 |
450-500 |
|
Tensile strength |
MPa ASTM D 4984 |
32.7 |
210-350 |
|
Specific Gravity |
ASTM D792 |
2.14 |
2.1-2.2. |
|
Working Temp |
oC |
250 |
250 |
|
Hardness |
ASTM D 4894 |
58 |
52-58 |
|
Elongation |
% ASTM D 4894 |
286 |
250-400 |
|
Shrinkage |
ASTM-D-570 |
0% |
0% |
