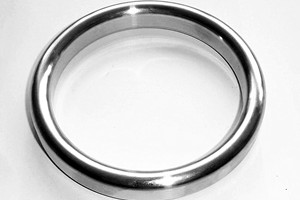

Kaxite Sealing's RX Ring Joint Gasket ensures leak-proof stability in high-pressure industrial environments, crafted from premium materials for durability. Its unique design offers superior sealing, ideal for pipelines and fittings, solving reliability concerns effortlessly. Experience unmatched performance and peace of mind with this top-tier solution today!
Ring Joint Gasket is manufactured by CNC equipment according to ASME B16.20 and API 6A standard.
• R(Oval)Ring joint gasket with oval cross section, suitable for ANSI B 16.5,ASME B16.47, series A flange, can be used in pressures up to 1000 PSI
• R(Octagonal)Ring joint gasket with octagonal cross section are designed for flanges with standard grooves,interchangeable with oval ring joint gaskets on modern octagonal grooved flanges, but has a higher sealing ability.
• RX Ring joint gasket is designed for pressures up to 5,000 PSI. They are interchangeable with R-oval or R-octagonal rings used on API 6B flanges.
• BX Ring joint gasket can only be used with 6BX flanges and 16BX hubs. BX Gaskets are designed for higher-pressure ratings starting at 5,000 lbs. and ending with 20,000 lbs.
Materials
Materials
Hardness (HB)
Temperature(oC)
Soft Iron
90
-60 to 500
Low Carbon Steel
120
-40 to 540
SS304
160
-250 to 540
SS304L
160
-250 to 540
SS316
160
-200 to 815
SS316L
160
-200 to 815
SS321
160
-200 to 870
SS347
160
-200 to 870
SS410
170
-200 to 850
5Cr-0.5Mo
130
-29 to 650
Inconel 600
150
-100 to 1095
Incoloy 825
150
-100 to 1095
