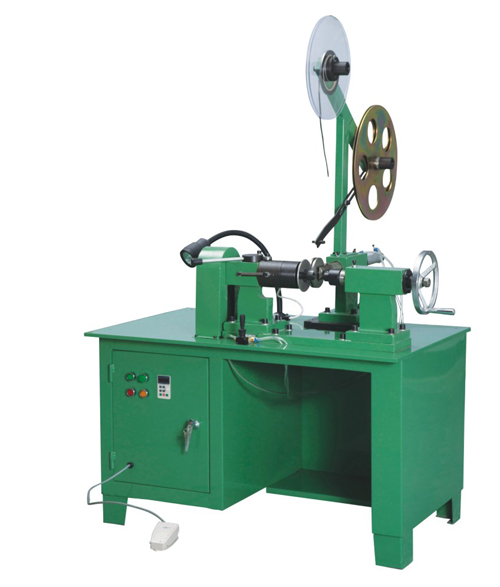

Winding Machine For Small Size SWG

Winding Machine For Small Size SWG

Kaxite Sealing's Winding Machine For Small Size SWG offers precise, efficient wire winding for compact applications. Its durable design, user-friendly operation, and high-speed performance save time and reduce material waste. Ideal for small-scale manufacturers and hobbyists in electronics and DIY projects, it ensures consistent results, solving messiness and inefficiency. Unlike bulky alternatives, it's compact and affordable. Experience seamless winding with Kaxite Sealing—order now for reliable quality!
Specification as following:
STYLE KXT E200A winding machine for small size SWG
Producing ability 1/2"—6" spiral wound gasket with or without inner ring
SWG thickness 4.5mm (also suitable for 2.5mm, 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)
Maximum gasket OD 200mm
Minimum gasket ID 15mm
Gasket OD tolerance ±0.5mm
Spindle motor rotation speed 0--240rpm
Total power 2.2kw
Spindle motor power 0.75kw
Power supply 380V/220V as request, 3 phases
Air compressor 0.6—0.8 MPA
Frequency Converter 2.2G
Machine measurement 1200*850*1650mm
Machine net weight 280kg
Hot Tags: Small Size SWG Winding Machine, SWG Winding Equipment, Automatic Wire Winding Machine
