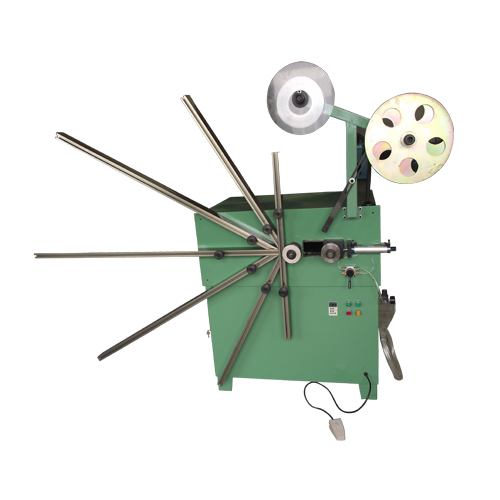

Manual Vertical Big Size Winding Machine For SWG

Introducing Kaxite Sealing's Manual Vertical Big Size Winding Machine For SWG – the powerful tool for effortless, precise winding of large wire gauges. Engineered for durability and ease of use, it solves cumbersome winding tasks for professionals in industrial and workshop settings. With its robust vertical design and manual control, users enjoy reliable performance and smooth operation, saving time and effort. Stand out with superior stability and efficiency compared to standard models. Experience seamless workflow and enhanced productivity today – a must-have for serious craftsmen and engineers seeking quality and precision.

Send Inquiry

Product Description

Specification as following:
STYLE	KXT E1200 Vertical big size winding machine
Producing ability	spiral wound gasket with or without inner ring
SWG thickness	4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)
Maximum gasket OD	1600mm
Minimum gasket ID	200mm
Gasket OD tolerance	±0.8mm
Total power	2.2kw
Spindle motor power	1.5kw
Frequency Converter	2.2G
Power supply voltage	380V/220V for option, 3 phases
linear speed	0-800mm/s
Air compressor	0.6-0.8 MPA
Machine measurement	22008501800mm
Machine net weight	220 kg
