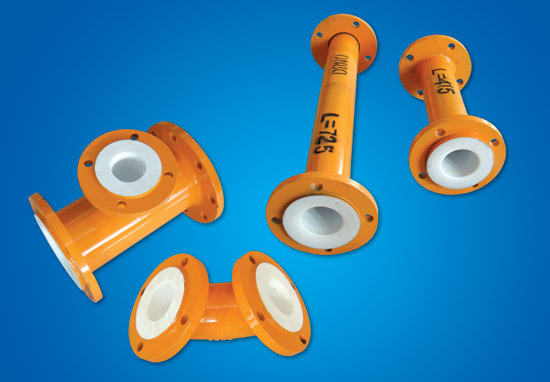

PTFE Steel-plastic Component Pipe

Discover the Kaxite Sealing PTFE Steel-plastic Component Pipe, engineered for superior performance in demanding applications. This innovative product combines the durability of steel with the corrosion-resistant properties of PTFE, ideal for industrial and chemical processing. Its unique design prevents leaks, extends equipment life, and reduces maintenance costs, solving reliability issues for engineers and facility managers. Experience enhanced efficiency and peace of mind with this standout solution over standard options.

Send Inquiry

Product Description

[ Features ]

The PTFE steel-plastic component pipe is made with high qualified ram extrusion tube, use special processing technology to tight the plastic tube inner steel pipe, the positive pressure is 1.6Mpa, the negative pressure is 77Kpa; it has a wide range of practicable temperature from -60

- +260

with good anticorrosion facility. It can transport corrosion gas, liquid under high temperature, which is unstable by others.

[ Specifications ]

Dg Diameter	S₁	S₂	D	F	L
25(1″)	3.5	2	21	55	4000
32(1¼″)	3.5, 4	2	28	68
40(1½″)	3.5	2	36	80
50(2″)	4	2	46	90
65(2½″)	4.5	2.5	60	105
80(3″)	4.5	2.5	75	125
100(4″)	4.5	3	94	150
125(5″)	4.5	3.5, 4	117	185
150(6″)	4.5	4	142	215
200(8″)	4.5	4, 4.5	191	280
