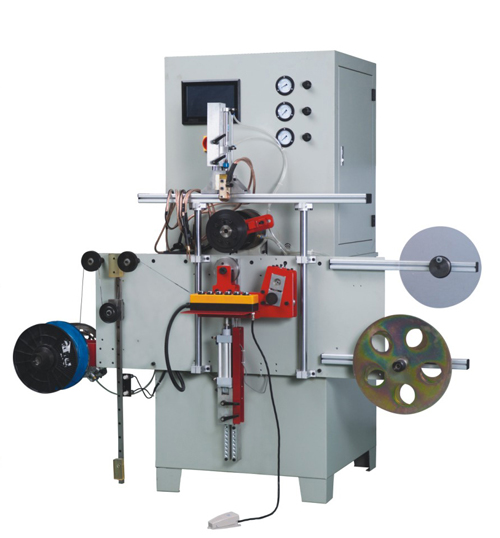

Automatic winding machine for spiral wound gasket Details
| STYLE |
KXT E300C Automatic winding machine for SWG |
| Working mode | Both Manual and Automatic mode |
| SS strip | Can use both pre-formed SS strip in pancake or 20-25kgs spool of flat strip |
| Producing ability | Standard package including models for 1"-10" 150# SWG with or without inner ring, other size model on request with extra charge |
| SWG thickness | 4.5mm (also suitable for 3.2 and 6.4mm after changing roller parts, V shape winding or W shape winding for option) |
| Maximum gasket OD | 500mm |
| Minimum gasket ID | 25mm |
| Gasket OD tolerance | ±0.2mm |
| Spindle speed | 0--312.5rpm |
| Total power | 8kw |
| Spindle motor power | 1.5kw |
| Welder power | 6kw |
| Power supply voltage | 380V or 220V for option, 3 phases |
| Air compressor | 0.6-0.8 MPA |
| PLC | xinjie |
| Production rate | 20--30s /pc (for ANSI 6" 150LB) |
| Machine measurement | 2000*1200*1900mm |
| Machine net weight | 600kg |
